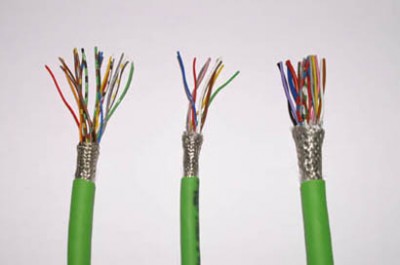

SIGNAL CABLES for BRUSHLESS and ASYNCHRONOUS MOTORS
Description of the PUR signal cables:
- Suitable for all brushless and asynchronous motors
- Class 6 suitable for drug chain – IEC 60228 – VDE 0295
- UL/CSA homologation
- DESINA approval
- Halogen free cables – conforming to RoHs
- Rating: 300 V
- Sldings by braid
- Low capacitance conductor/conductor and conductor/shield
CABLES AVAILABLE IN STOCK:
[3 x (2 x 0.14) + 2 x (0.5)] mm²
[4 x 2 x 0.38 + 4 x 0.5] mm²
[6 x 2 x 0.25] mm²
[3 x (2 x 0.14) + 4 x 0.14 + 2 x 0.5] mm²
[3 x (2 x 0.14) + 4 x 0.14 + 4 x 0.25 + 2 x 0.5] mm²
[6 x 2 x 0.14 + (2 x 0.14) + 2 x 0.5] mm²
[6 x 2 x 0.34 + (2 x 0.34) + 2 x 1] mm²
[2 x 2 x AWG24 + 2 x AWG22]
For other sections, please contact us.
ALL CABLES ARE AVAILABLE IN PVC VERSION.
|
