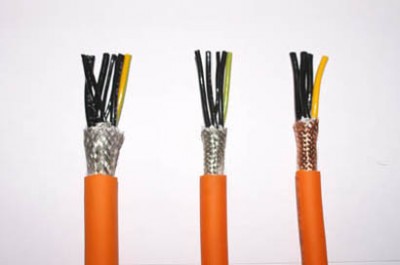

POWER CABLES for BRUSHLESS and ASYNCHRONOUS MOTORS
Description of the PUR power cables:
- Suitable for all brushless and asynchronous motors
- Class 6 suitable for drug chain – IEC 60228 – VDE 0295
- UL/CSA homologation
- DESINA approval
- Halogen free cables – conforming to RoHs
- Rating: 0.6 / 1 kV (Power) and 300 V (Control)
- Shieldings by braid
- Low capacitance conductor/conductor and conductor/shield
CABLES AVAILABLE IN STOCK:
POWER CABLES
[4 G 0.75] mm²
[4 G 1.5] mm²
[4 G 2.5] mm²
[4 G 4] mm²
[4 G 6] mm²
[4 G 10] mm²
[4 G 16] mm²
POWER CABLES + 1 PAIR
[4 G 1.5 + (2 x 1)] mm²
[4 G 2.5 + (2 x 1)] mm²
[4 G 4 + (2 x 1)] mm²
[4 G 6 + (2 x 1.5)] mm²
[4 G 10 + (2 x 1.5)] mm²
[4 G 16 + (2 x 1.5)] mm²
POWER CABLES + 2 PAIRS
[4 G 1.5 + 2 x (2 x 0.75)] mm²
[4 G 2.5 + 2 x (2 x 0.75)] mm²
[4 G 4 + 2 x (2 x 1)] mm²
[4 G 6 + 2 x (2 x 1)] mm²
For other sections, please contact us.
ALL CABLES ARE AVAILABLE IN PVC VERSION.
|
