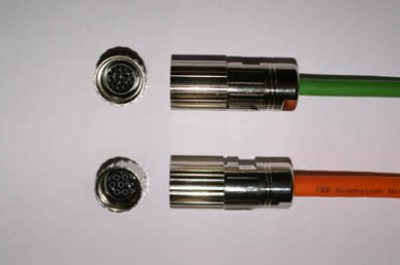

CABLES for BRUSHLESS with CONNECTOR M17
Description of the PUR cables:
- Class 6 suitable for drag chain – IEC 60228 – VDE 0295
- UL/CSA homologation
- DESINA approval
- Halogen free cables – conforming to RoHs
- Rating: 0.6 – 1 kV for power cables and 300 V for pair
30 V for signal cables
- Shieldings by braid
- Low capacitance conductor/conductor and conductor/shield
SIGNAL CABLES
[2 x 2 x AWG24 + 2 x AWG22]
[3 x (2 x 0.14) + 4 x 0.14 + 2 x 0.5] mm²
[3 x (2 x 0.14) + 4 x 0.14 + 4 x 0.25 + 2 x 0.5] mm²
POWER CABLES
[4 G 0.75] mm²
[4 G 1] mm²
[4 G 1 + (2 x 0.75)] mm²
Characteristics :
- Exist in version extension cable
- Lenghts on request
- Identification according to your codes
- Insulation and continuity tests
- Quality follow-up by identifying code
ALL CABLES ARE AVAILABLE IN PVC VERSION.
|
