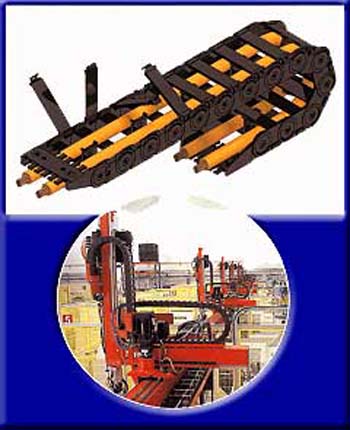

Uniflex (formerly Versatrax in the USA)
Description: The "Next Generation" of Cable Carriers. Uniflex features snap-together/hinge opening design, opening from the inner or outer radius, constructed from high strength, fiber reinforced nylon.
Cavity Size Range:
Smallest: 18mm height x 20mm wide
Largest: 44mm height x 250mm wide
Key Features:
• Light weight
• Toughest closed or opening style nylon carriers
• Double stop system = best self-supporting spans
• Snap-in vertical dividers and horizontal shelving
• Integral cable strain-relief mounting brackets
• Snap-open lids from either inside or outside radius
Summary
The new highly versatile Uniflex generation of plastic cable carriers from KabelSchlepp offers maximum performance and value for money.
The design gives optimum support to the cables and hoses carried, which together with a choice of either plastic or aluminum profiled shelving systems, ensures the longest possible working life. Noise and vibration is kept to a minimum by means of a double radius control stops and by the design of each link which is refined to limit the polygon effect ('notchiness'). In addition, the new KabelSchlepp chains set new standards for lateral stability and self-support characteristics.
The unique yet simple hinge design allows the stays to be opened from either end and, once open, to remain fixed to the link and not fall into adjacent machinery. The hinge mechanism is the strongest in its class, giving a maximum resistance to the bursting forces associated with high pressure hoses.
|
