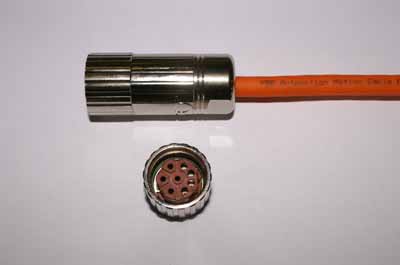

ASSEMBLED CABLES for BRUSHLESS with CONNECTOR M23 – 8 POLES – T 1
Description of assembled cables M23-8 poles :
- Suitable for all brushless with panel base M23 – 8 poles – 3+1+4
- Delivered according to manufacturers’ specifications
- Sections : from 0.75 mm² up to 2.5 mm²
- Version with 2 shielded pairs for motors with brake and PTC
- Class 5 –static application- and Class 6 –dynamic application-
- UL/CSA homologation and DESINA approval
- Halogen free cables – conforming to RoHs
- Rating: 0.6/1 kV for Power and 300 v for Control (shielded pairs)
- Total shielding and shielding of the pairs by braid
Characteristics :
- Lenghts on request
- Customized finishing for the drive
- Identification according to your codes
- Insulation and continuity tests
- Quality follow-up by identifying code
ALL CABLES ARE AVAILABLE IN PUR AND PVC VERSION.
|
