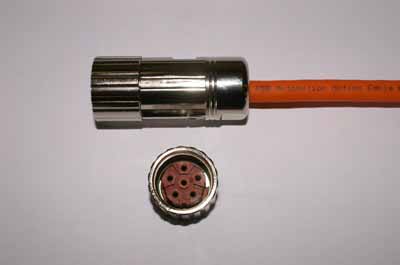

ASSEMBLED CABLES for BRUSHLESS with CONNECTOR M23 – 6 POLES – T 1
Description of assembled cables M23-6 poles :
- Suitable for all brushless with panel base M23 – 6 poles –5+1
- Delivered according to manufacturers’ specification
- Sections : from 0.75 mm² up to 4 mm²
- Version with shielded pair for motorisations with brake
- Class 5 –static application- and Class 6 –dynamic application-
- UL/CSA homologation and DESINA approval
- Halogen free cables – conforming to RoHs
- Rating: 0.6/1 kV for Power and 300 V for Control (shielded pair)
- Total shielding and shielding of the pair by braid
Characteristics :
- Lenghts on request
- Customized finishing for the drive
- Identification according to your codes
- Insulation and continuity tests
- Quality follow-up by identifying code
ALL CABLES ARE AVAILABLE IN PUR AND PVC VERSION.
|
