Whereever dynamical acceleration, quick traversing, or a high stalled torque are important as well as a high precision of speed and positioning, the SK 1000 E is the best choice. With a mini PLC inside and a field bus connection port, it will ensure control of even the most critical driving jobs.
Rated current: 2 - 20 A, 3 AC 380 V - 460 V

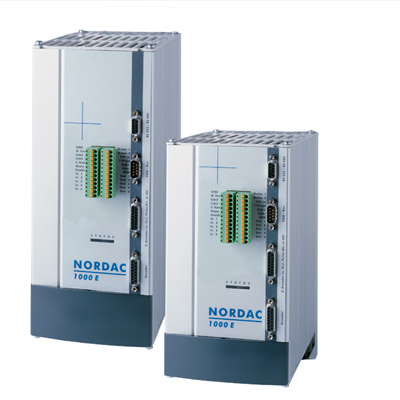

Fully digitized NORDAC SK 1000 E servo controllers with field bus connection are designed to control the torque, speed and position of synchronous motors.
Owning to the flux-current type of control with a sampling time of only 50 µs, this system is extremly dynamic and provides full motor torque even at zero speed. With the rotor position being fed back, a very high speed and position accuracy is obtained which is not load-dependent at all. Even the most sophisticated drive problems can be solved if this servo controller is used. Implemented technological functions such as electronic reduction with any gear ratio desired are among the standard equipment provided.
Other controller functions can be added integrating a integrated PLC unit. The controllers are started up by means of an operating software run by Windows 95, 98, 2000, NT and XP. As a motor/controller database, an oscilloscopic function and numerous test functions are delivered with each new device, starting-up is really easy, with no expert knowledge being required.
Highly dynamic behaviour, enabling the operation of motors with an electrical or mechanical time constant as short as 1 ms
full torque at zero speed
sinus-shaped commutation
entirely digital type of control
integrated line filter A
integrated braking chopper and braking resistor
torque, speed, and position control, all of these with a control process sampling time of 50 ms
ramp generator / travelling profile generator
stepping motor interface
special technical functions, e.g. electronic reduction
encoder, resolver, or absolute encoder (SSI)
incremental encoder emulation output
CAN field bus (up to 1 Mbps), RS 232 and RS 485 (up to 56000 bps)
+/- 10 V setpoint interface, 12 bit
6 user-programmable inputs
6 user-programmable short-circuit-proof outputs
1 user-programmable relay e.g. for integrated stopping brake control
integrated PLC
integrated reference switch logic
integrated limit switch control
convenient and fast starting-up ensured by operating software with database functions, and oscillosopic function
side-by-side installation with no gaps in between
ambient temperature allowed up to 40 0 C
integrated motor temperature control |
