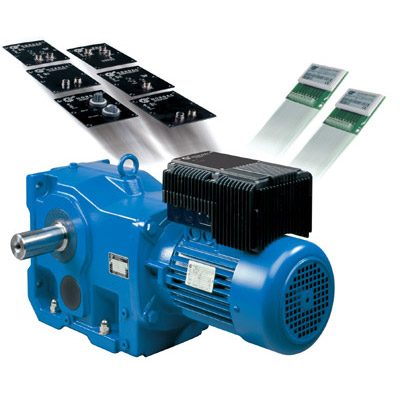

The new frequency inverter combinated with a geared motor SK 300E

The NORDAC trio SK 300E is a combination of geared motor and highly functional frequency inverter which enables process-oriented, decentralized system configurations to be implemented very conveniently. Designed to ensure maximum ease of handling and operation the inverter is user-friendly in every respect. The inverter is provided with what can be described as an "electronic type plate" which the motor will read and permanently store with the effect that the inverter data are not lost to the motor even if the inverter is removed. As the inverter can be upgraded with a number of modules within the scope of a well thought-out concept, appropriate control components are available to establish the optimal configuration for any process to be controlled.

Basic features: High protection class (IP66)
Class B integrated line filter
Modular sub-assemblies with an adequate number of inputs and outputs for the inverter to be linked to other control loops
Optional potentiometer function permitting the frequency to be set directly on the inverter
Automatic saving of data in the motor due to the "electronic type plate"
Universal, easily accessible connection unit enabling user-friendly manipulation
Parameter setting is conveniently carried out with a control box or a dedicated PC software

Potentiometer for the local operation
Profibus Connection of bus
InterBus Connection of bus
CAN / CANopen Connection of bus
DeviceNet Connection of bus
ASi Connection of bus

Custom interface
Basic equipment 1 brake control module
1 multifunction relay
1 digital input
RS 485 interface
Basic I/O 3 digital inputs
1 analogue input 0...10V, 0/4...20mA
Standard I/O 4 digital inputs
2 analogue inputs 0...10V, 0/4...20mA
1 analogue/digital output
